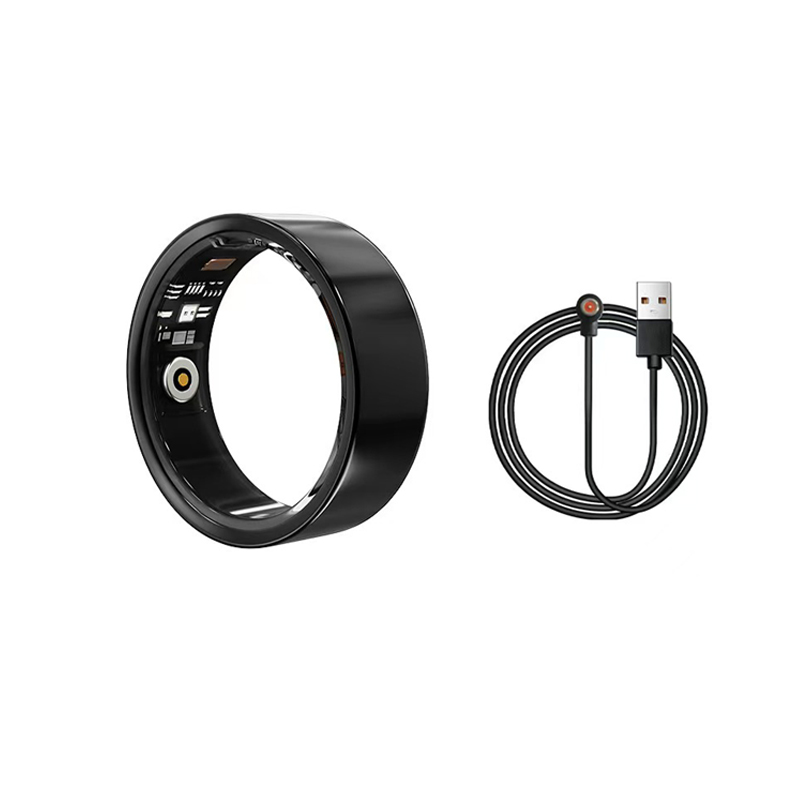

Smart Ring

Previous: T-MAX-PRO

Next:No More

Profile:A smart wearable device that integrates health monitoring, activity tracking, intelligent reminders, and other functions.

Service Hotline:+86 186 2036 8239

Inquiry

  • Product Description

Regular exercise GPS track; APP initiates heart rate test/all-day dynamic heart rate trend and data analysis/heart rate historical data/blood oxygen test/continuous blood oxygen data/blood oxygen historical data; sedentary reminder/low battery reminder/heart rate warning.

Chinese specification parameters
Water Proof 10ATM
Material Case: Titanium steel, aluminum, ceramic optional
Size
”# 6(16.5 mm) # 7(17.4 mm) # 8(18.2 mm) # 9(19.0 mm) # 10(19.9 mm) # 11(20.7 mm) # 12(21.5 mm) # 13(22.3 mm) thickness 3mm
Weight 2.9 G or so

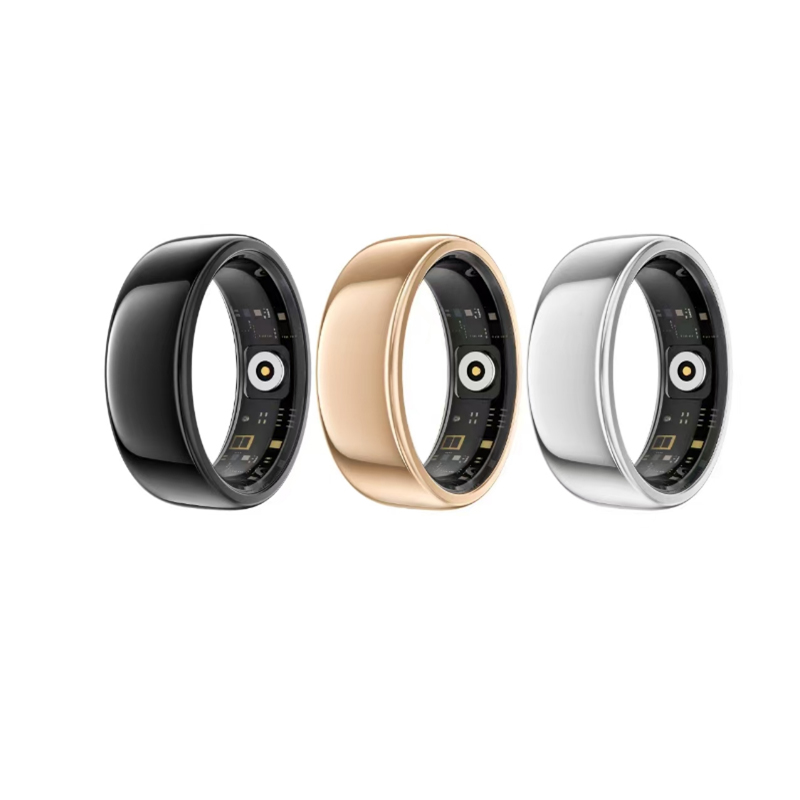

Color Silver, gold , Black color
Chipset (main chip model) 中科蓝讯AB2026B3
Memory (ROM+RAM) SRAM:64KB+8KB(cache),Flash:8Mbit
G-Sensor DA267
Bluetooth Version 5.3
MobileAPP-GPS Yes
Heart rate sensor HX3918
Battery Type Polymer Pure Cobalt Battery
Battery Protection Support lithium battery protection: Under-discharge protection voltage is 2.8V. Overcharge voltage when fully charged is 4.2V.
Operating temperature range (-20-50℃)
Charging management circuit The MCU has a built-in charging management PMU. The configurable charging current range is 5-300mA. It supports anti-reverse connection and short-circuit charging protection
Battery Capacity 15mah-20mah(optional)
Charging time one hours
Theory Standby time 12-15 days
Normal using time 5-7 days
Charging Magnetic charge /charging case(optional)
Software Function&App
Compability Android 5.0 and above; Apple IOS 10.0 and above
Compability Software LuckRing
Device-side software functions
Operation The ring has no touch and no buttons; App initiates movement and function tests
APP software functions
Module Notes
Motion data Accurate distance / accurate calorie data / accurate step count
Multisports Conventional Motion GPS Track
Step&G-sensor Self-developed ring precision step counting algorithm, with an accuracy rate of more than 95% (compared to Garmin sports watches).
Heart rate APP launches heart rate test / Dynamic rate trend and data analysis / Heart rate historical data
Heart rate accuracy The accuracy rate of static heart rate is more than 95%,(compared with the laboratory test of heart rate belt)
Sleep Precise sleep algorithm, sleep coach reminds, sleep aids audio powerful sleep aids.
Blood oxygen APP initiated blood oxygen test / continuous blood oxygen data / historical blood oxygen data
Camera control Remote control of mobile phone photography by specific gestures
Video control Control the mobile phone with specific gestures to play, pause, switch videos, give likes and collect for short videos. (Coming soon)
Body electricity Multi-dimensional analysis of exercise data, heart rate data, and sleep data to calculate body fatigue status
Others Unit format, sedentary reminder, low power reminder, heart rate warning
Wechat&Apple Access WeChat Sports and Apple Health
APP multi-Language support 28 kinds of National language: multilingual
【Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Vietnam, Malay, Indonesian, Hindi, English, French, German, Italian, Russian, Portugal, Türkiye, Hungary, Dutch, Denmark, Greek, Spain, Poland, Finnish, Czech, Croatian, Swedish, Hebrew, Persian, Arabic】
Product manual explain how to download and use  APP
Support OTA Support for OTA
APP LuckRing



Product Details:
